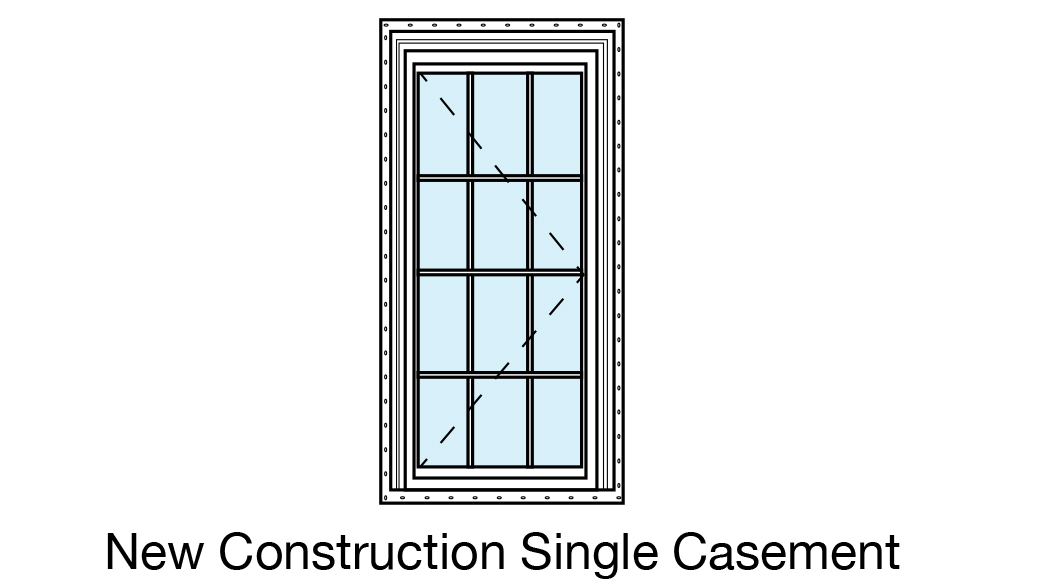

Trustgard Single Casement
New Construction Window

Standard Unit Includes

3 1/4" Frame, 7/8" Overall Glazing, Nail Fin, J-Channel, Full Screen, Roto Hardware, Insulated Low E Argon, .27 U-Factor

Size Info

Valid Widths: 17"-34" (Stationary Unit Up to 48")
Valid Heights 24"-72"
Not to exceed Maximum United Inch 93 (Stationary up to 103)

Optional

Profile Grids
Simulated Divided Lite
Frame: Remove J-Channel, New England Trim Kit, Mullion Assembly
Glass: Obscure, Tempered Glass, Tempered Obscure, Trustgard Single, Trimax Single , Equalite Triple LSR, Equalite Triple Max , Trustgard Twin Venting , Trimax Twin Venting
Accessories: NETK w/ Bead, NETK Picture Frame, NETK Picture Frame w/Bead
Hardware: Roto Egress Hardware (28" Minimum Width) or Stationary Sash, Roto Corner Drive Hardware

Extension Jambs

Primed Pine: 4-5/8", 6-5/8"
Clear Pine: 4-5/8", 6-5/8"
Custom size and species: Ask for Quote
